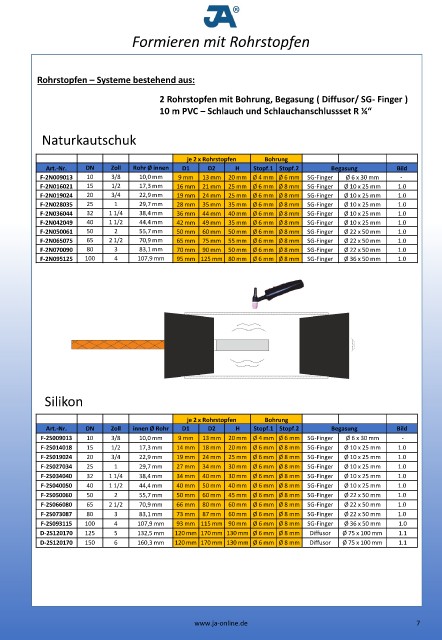

Formieren mit Rohrstopfen

Rohrstopfen – Systeme bestehend aus:
2 Rohrstopfen mit Bohrung, Begasung ( Diffusor/ SG- Finger )
10 m PVC – Schlauch und Schlauchanschlussset R ¼“

Naturkautschuk

je 2 x Rohrstopfen Bohrung
Art.-Nr. DN Zoll Rohr Ø innen D1 D2 H Stopf.1 Stopf.2 Begasung Bild
F-2N009013 10 3/8 10,0 mm 9 mm 13 mm 20 mm Ø 4 mm Ø 6 mm SG-Finger Ø 6 x 30 mm -
F-2N016021 15 1/2 17,3 mm 16 mm 21 mm 25 mm Ø 6 mm Ø 8 mm SG-Finger Ø 10 x 25 mm 1.0
F-2N019024 20 3/4 22,9 mm 19 mm 24 mm 25 mm Ø 6 mm Ø 8 mm SG-Finger Ø 10 x 25 mm 1.0
F-2N028035 25 1 29,7 mm 28 mm 35 mm 35 mm Ø 6 mm Ø 8 mm SG-Finger Ø 10 x 25 mm 1.0
F-2N036044 32 1 1/4 38,4 mm 36 mm 44 mm 40 mm Ø 6 mm Ø 8 mm SG-Finger Ø 10 x 25 mm 1.0
F-2N042049 40 1 1/2 44,4 mm 42 mm 49 mm 35 mm Ø 6 mm Ø 8 mm SG-Finger Ø 10 x 25 mm 1.0
F-2N050061 50 2 55,7 mm 50 mm 60 mm 50 mm Ø 6 mm Ø 8 mm SG-Finger Ø 22 x 50 mm 1.0
F-2N065075 65 2 1/2 70,9 mm 65 mm 75 mm 55 mm Ø 6 mm Ø 8 mm SG-Finger Ø 22 x 50 mm 1.0
F-2N070090 80 3 83,1 mm 70 mm 90 mm 50 mm Ø 6 mm Ø 8 mm SG-Finger Ø 22 x 50 mm 1.0
F-2N095125 100 4 107,9 mm 95 mm 125 mm 80 mm Ø 6 mm Ø 8 mm SG-Finger Ø 36 x 50 mm 1.0

Silikon

je 2 x Rohrstopfen Bohrung
Art.-Nr. DN Zoll innen Ø Rohr D1 D2 H Stopf.1 Stopf.2 Begasung Bild
F-2S009013 10 3/8 10,0 mm 9 mm 13 mm 20 mm Ø 4 mm Ø 6 mm SG-Finger Ø 6 x 30 mm -
F-2S014018 15 1/2 17,3 mm 14 mm 18 mm 20 mm Ø 6 mm Ø 8 mm SG-Finger Ø 10 x 25 mm 1.0
F-2S019024 20 3/4 22,9 mm 19 mm 24 mm 25 mm Ø 6 mm Ø 8 mm SG-Finger Ø 10 x 25 mm 1.0
F-2S027034 25 1 29,7 mm 27 mm 34 mm 30 mm Ø 6 mm Ø 8 mm SG-Finger Ø 10 x 25 mm 1.0
F-2S034040 32 1 1/4 38,4 mm 34 mm 40 mm 30 mm Ø 6 mm Ø 8 mm SG-Finger Ø 10 x 25 mm 1.0
F-2S040050 40 1 1/2 44,4 mm 40 mm 50 mm 40 mm Ø 6 mm Ø 8 mm SG-Finger Ø 10 x 25 mm 1.0
F-2S050060 50 2 55,7 mm 50 mm 60 mm 45 mm Ø 6 mm Ø 8 mm SG-Finger Ø 22 x 50 mm 1.0
F-2S066080 65 2 1/2 70,9 mm 66 mm 80 mm 60 mm Ø 6 mm Ø 8 mm SG-Finger Ø 22 x 50 mm 1.0
F-2S073087 80 3 83,1 mm 73 mm 87 mm 60 mm Ø 6 mm Ø 8 mm SG-Finger Ø 22 x 50 mm 1.0
F-2S093115 100 4 107,9 mm 93 mm 115 mm 90 mm Ø 6 mm Ø 8 mm SG-Finger Ø 36 x 50 mm 1.0
D-2S120170 125 5 132,5 mm 120 mm 170 mm 130 mm Ø 6 mm Ø 8 mm Diffusor Ø 75 x 100 mm 1.1
D-2S120170 150 6 160,3 mm 120 mm 170 mm 130 mm Ø 6 mm Ø 8 mm Diffusor Ø 75 x 100 mm 1.1
