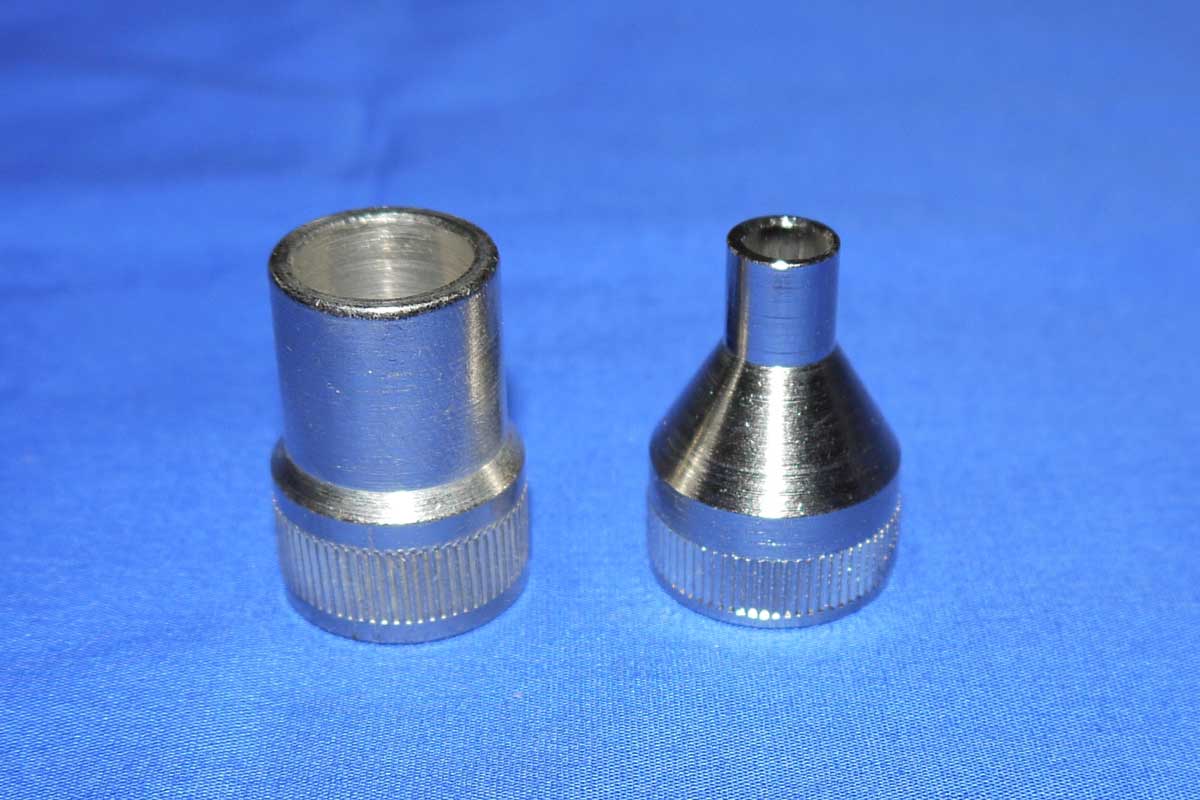

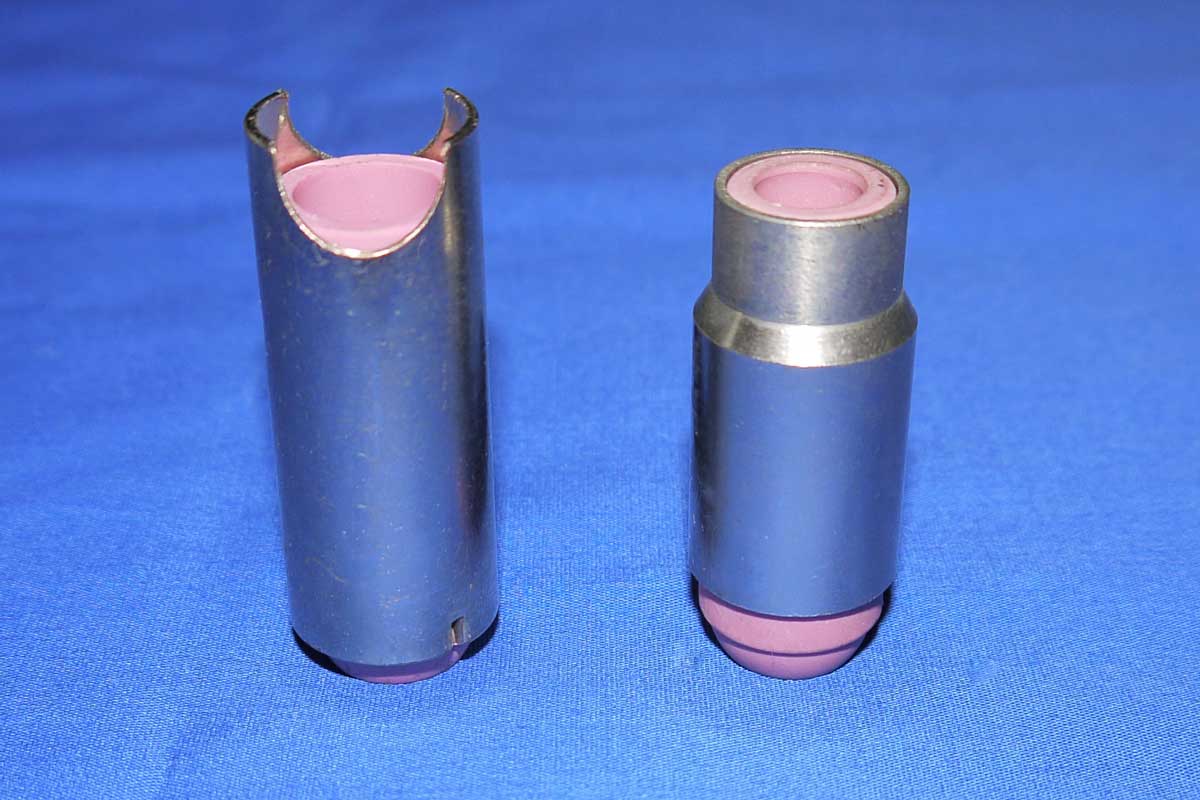

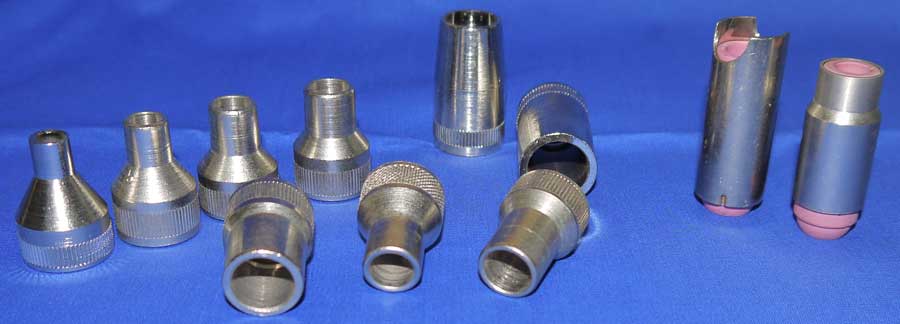

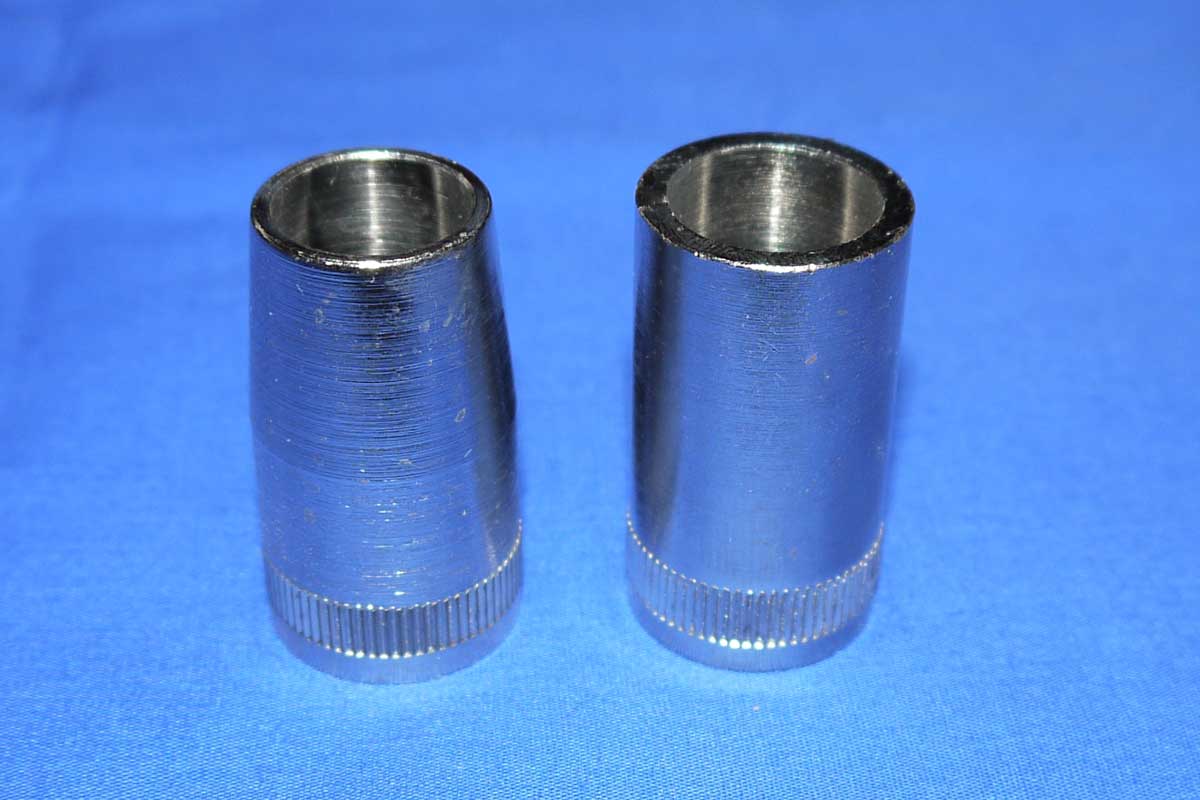

Metal Gas Nozzle

Gasdues-Metall


Order number
Size   dia Ø       Lenght
Thread for Isolator for Isolator
MGD-A4 4 7,0 mm 32 mm UNF 3/4" 16 IG N1705300 N1705300-15
MGD-A5 5 8,0 mm 32 mm UNF 3/4" 16 IG N1705300 N1705300-15
MGD-A6 6 9,5 mm 32 mm UNF 3/4" 16 IG N1705300 N1705300-15
MGD-A7 7 11,0 mm 32 mm UNF 3/4" 16 IG N1705300 N1705300-15
MGD-A8 8 12,5 mm 32 mm UNF 3/4" 16 IG N1705300 N1705300-15
MGD-B10 10 14,5 mm 32 mm UNF 3/4" 16 IG N1705300 N1705300-15
MGD-B12 12 16,0 mm 41 mm UNF 3/4" 16 IG N1705300 N1705300-15
MGD-B13 13 17,5 mm 41 mm UNF 3/4" 16 IG N1705300 N1705300-15

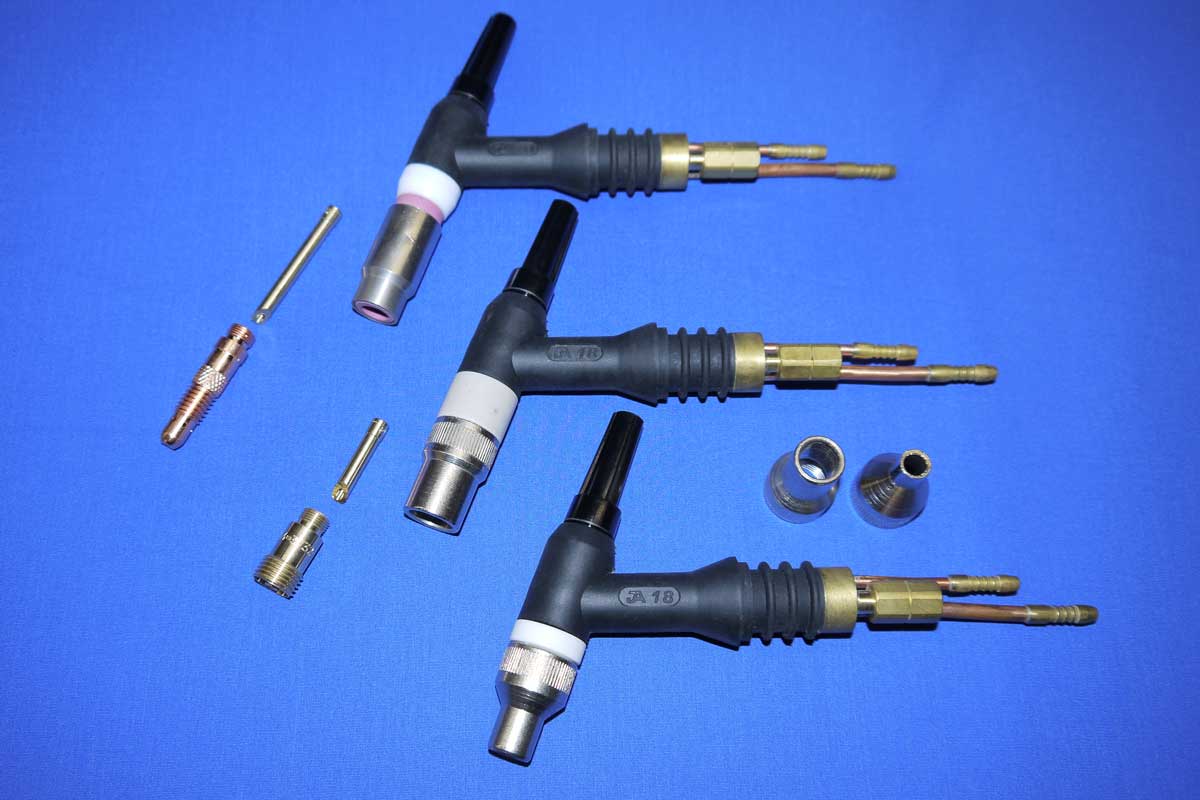

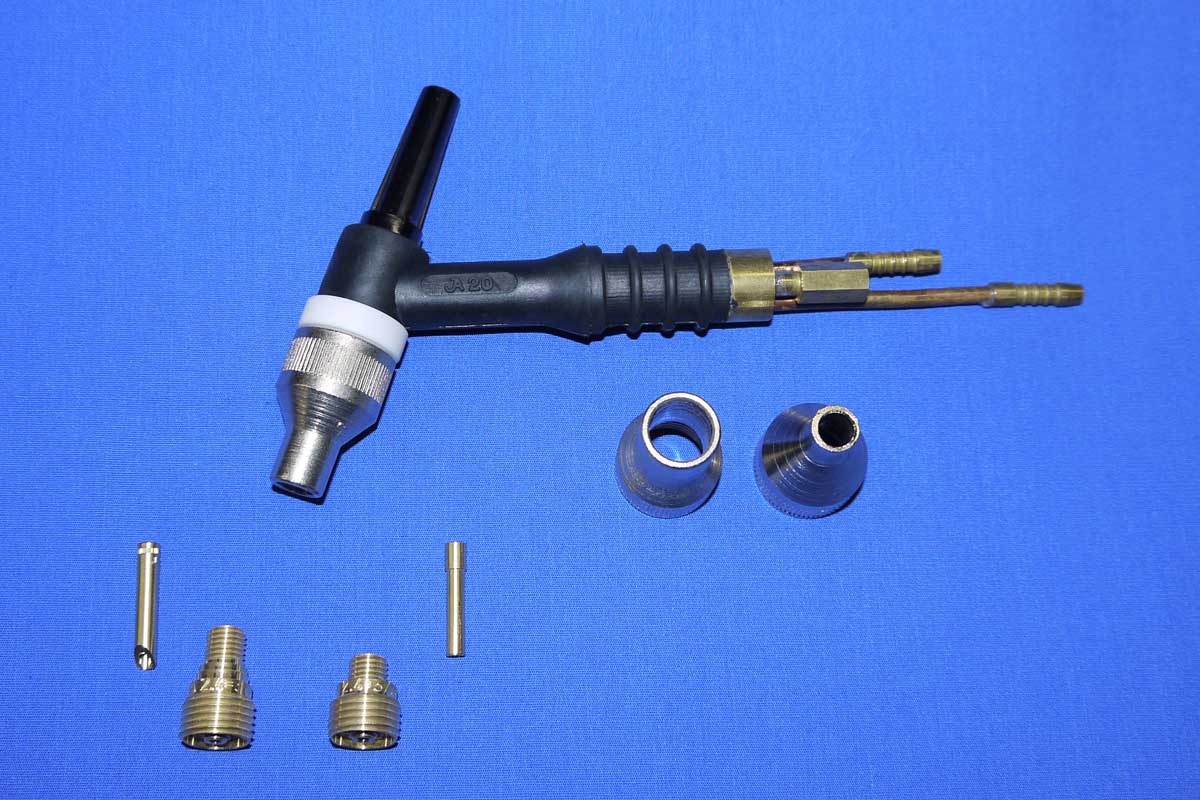

To be used for burner type:

                                                           JA 9,20 with N09073xx and N09074xx

                                                           JA 17, 18, 26 +220 with clamping sleeve housing N09070xx und Gaslins N17073xx

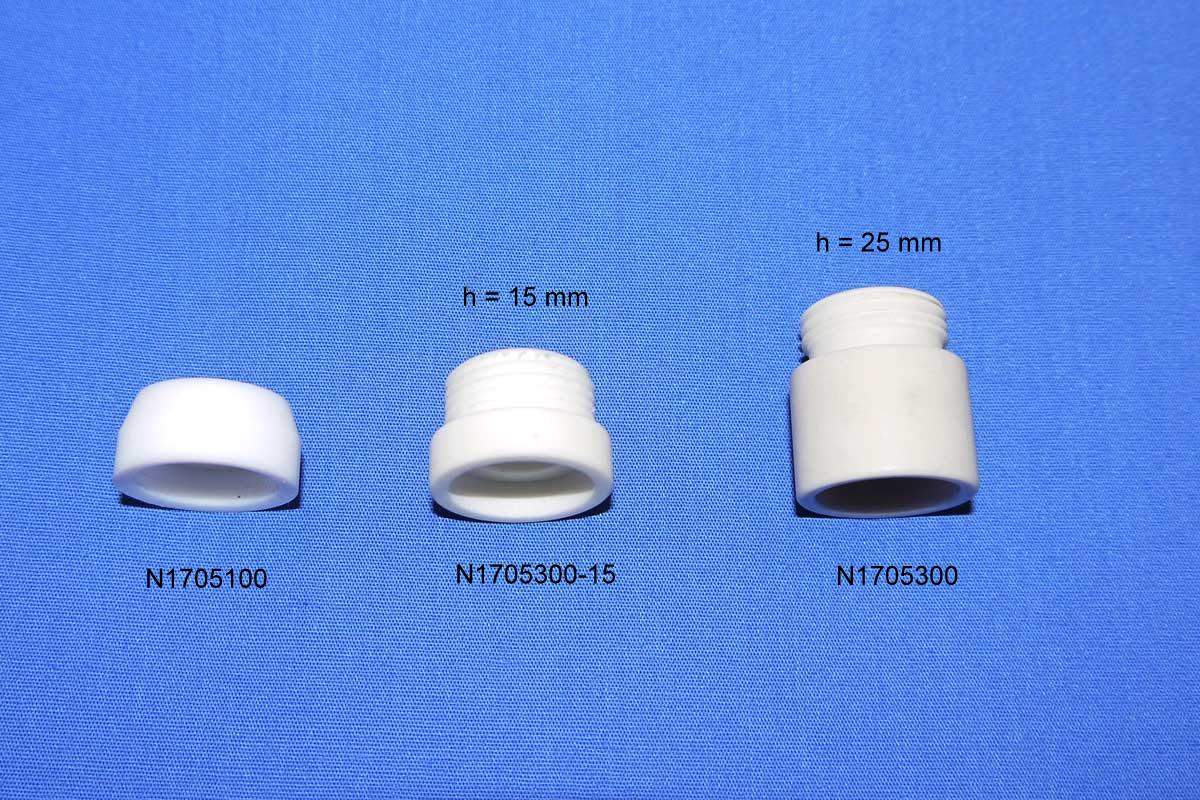

The isolators N1705300-15 and N1705300 are suitable for all burner types!
