Copper screen Gas lenses
+ Higher durability !
Gas lens suitable for Tig Torch JA 24,20,9
Copper screen Gas lens
| Order-Nr. | Ø Bore | Length |
| K0907210 | 1,0 mm | 11,5 mm |
| K0907216 | 1,6 mm | 11,5 mm |
| K0907224 | 2,4 mm | 11,5 mm |
| K0907332 | 3,2 mm | 11,5 mm |
Outer Ø = 14,0 mm ; Length = 11,0 mm
Gas lens suitable for Tig Torch JA 24,20,9,2 WT
Copper screen Gas lens
| Order-Nr. | Ø Bore | Length |
| K0907310 | 1,0 mm | 16,5 mm |
| K0907316 | 1,6 mm | 16,5 mm |
| K0907324 | 2,4 mm | 16,5 mm |
| K0907332 | 3,2 mm | 16,5 mm |
Outer Ø = 14,0 mm ; Length = 16,5 mm
Gas lens suitable for Tig Torch JA 20,9,2 WT
Copper screen Gas lens
| Order-Nr. | Ø Bore | Length |
| K0907410 | 1,0 mm | 22,5 mm |
| K0907416 | 1,6 mm | 22,5 mm |
| K0907424 | 2,4 mm | 22,5 mm |
| K0907432 | 3,2 mm | 22,5 mm |
Outer Ø = 14,0 mm ; Length = 22,5 mm
Gas lens suitable for Tig Torch JA 20,9,2 WT
Copper screen Gas lens
| Order-Nr. | Ø Bore | Length |
| K0907516 | 1,6 mm | 29,6 mm |
| K0907524 | 2,4 mm | 29,6 mm |
| K0907532 | 3,2 mm | 29,6 mm |
Outer Ø = 25,0 mm ; Length = 29,5 mm
Gas lens suitable for Tig Torch JA 20,9
Copper screen Gas lens
| Order-Nr. | Ø Bore | Length |
| K0907616 | 1,6 mm | 40 mm |
| K0907624 | 2,4 mm | 40 mm |
| K0907632 | 3,2 mm | 40 mm |
Outer Ø = 25,0 mm ; Length = 40,0 mm

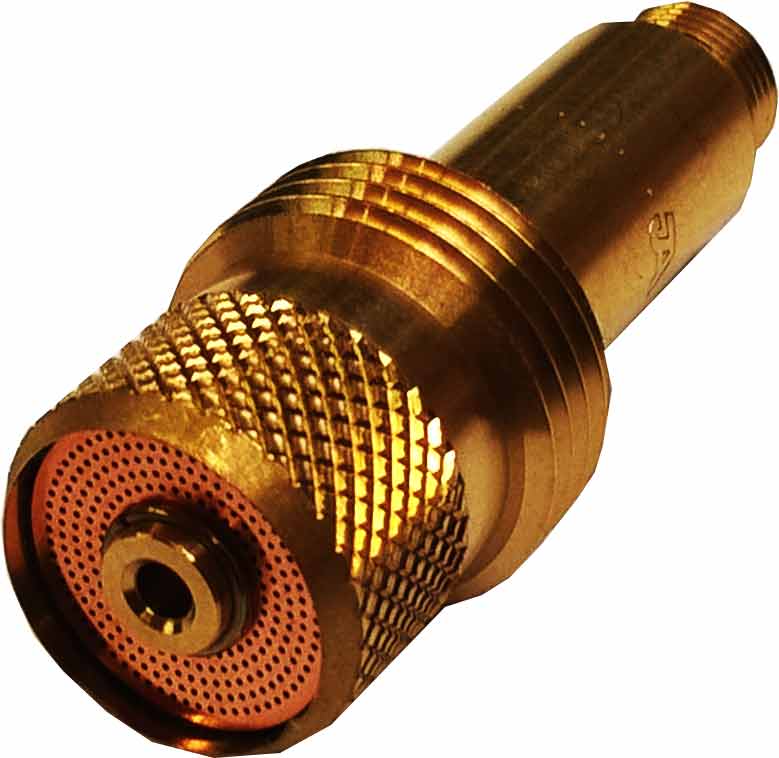

Gas lens suitable for Tig Torch JA 17,18,26,220,27
Copper screen Gas lens
| Order-Nr. | Ø Bore | Length |
| K1707110 | 1,0 mm | 50 mm |
| K1707116 | 1,6 mm | 50 mm |
| K1707124 | 2,4 mm | 50 mm |
| K1707132 | 3,2 mm | 50 mm |
| K1707140 | 4,0 mm | 50 mm |
Outer Ø = 19,0 mm ; Length = 50,5 mm
Gas lens suitable for Tig Torch JA 17,18,26,220,27
Copper screen Gas lens
| Order-Nr. | Ø Bore | Length |
| K1707210 | 1,0 mm | 50 mm |
| K1707216 | 1,6 mm | 50 mm |
| K1707224 | 2,4 mm | 50 mm |
| K1707232 | 3,2 mm | 50 mm |
| K1707240 | 4,0 mm | 50 mm |
Outer Ø = 25,0 mm ; Length = 50,5 mm
Copper screen Gas lens
| Order-Nr. | Ø Bore | Length |
| K1707310 | 1,0 mm | 27 mm |
| K1707316 | 1,6 mm | 27 mm |
| K1707324 | 2,4 mm | 27 mm |
| K1707332 | 3,2 mm | 27 mm |
Outer Ø = 14,0 mm ; Length = 27,0 mm
All Gas lenses (K17) are also available with the special thread M10 x 1
