JA - Outer Forming

Used for individual use in pipes.

Pipes: The system will be manufactured on the exact pipe outside diameter (the rack stretches by spring tension!)

Consists of: Stainless steel sheet 0,3 mm and Silicone
Dimensions: Width = 100 mm ; High = 11,0 mm (inside) / 13 mm (outside); ca. 0,6 kg/mtr.

All productions are custom-made and cannot be exchanged!

Not suitable for weld pool protection !

Aussenformierung

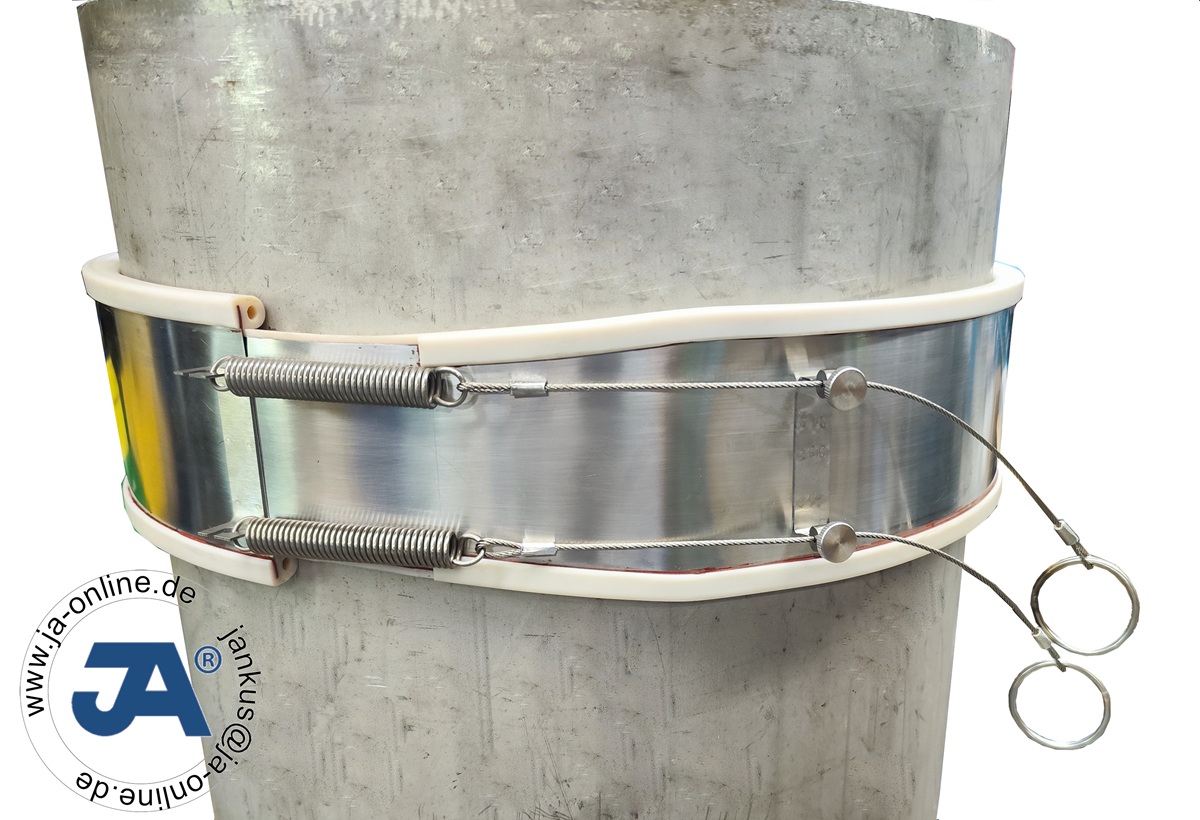

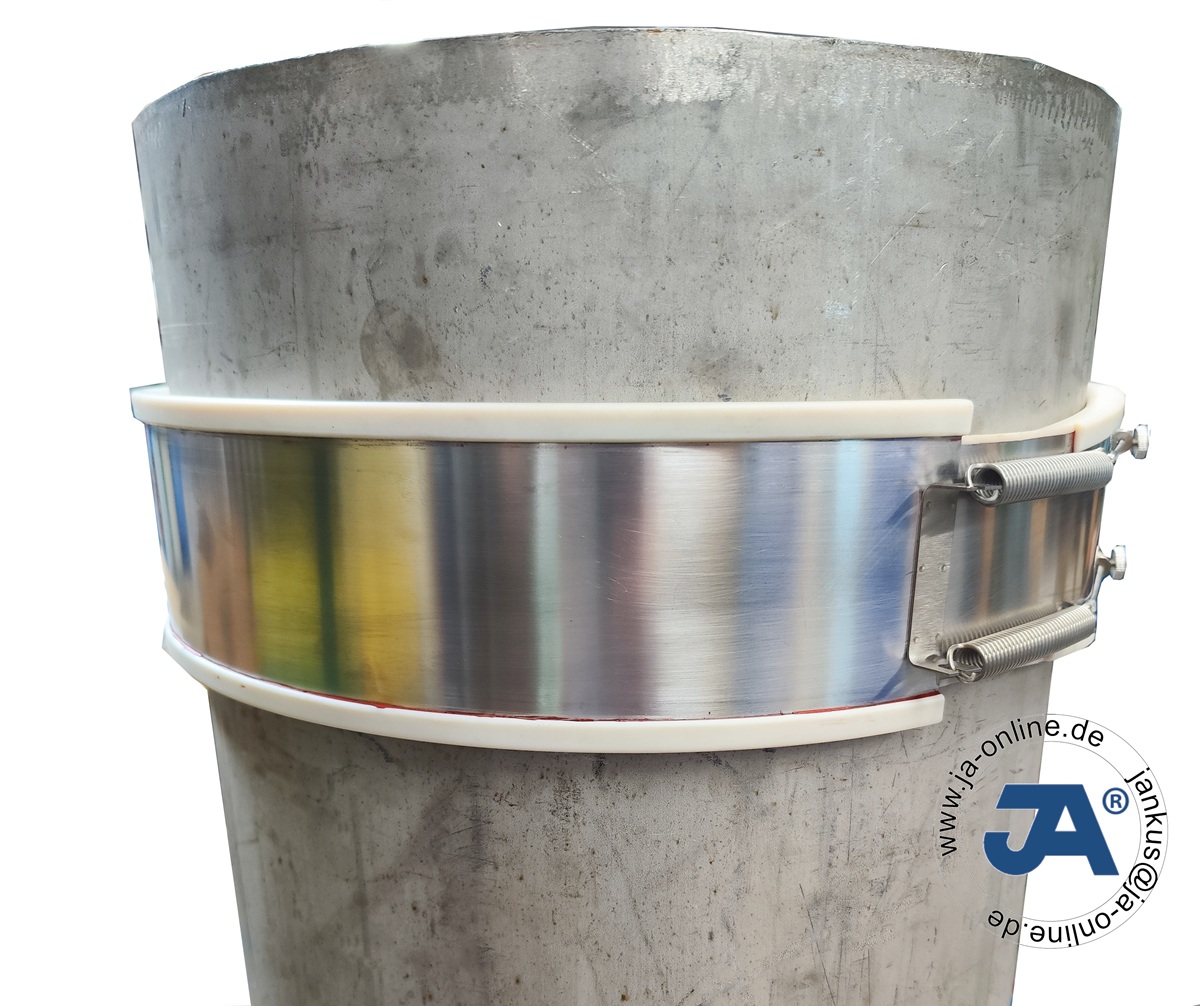

Photos



from pipe outside Ø 400 mm

On request, also with copper bar (for plasma welding).

  • Click to enlarge image 01.jpg
  • Click to enlarge image 02.jpg
  • Click to enlarge image 03.jpg
  • Click to enlarge image 04.jpg

Eigene Herstellung e







Test results and tarnishing

  • Click to enlarge image a.jpg
  • Click to enlarge image b.jpg
  • Click to enlarge image c.jpg
  • Click to enlarge image d.jpg
  • Click to enlarge image e.jpg
  • Click to enlarge image f.jpg
  • Click to enlarge image g.jpg
  • Click to enlarge image h.jpg
  • Click to enlarge image i.jpg
  • Click to enlarge image j.jpg
  • Click to enlarge image k.jpg
  • Click to enlarge image l.jpg
  • Click to enlarge image m.jpg
  • Click to enlarge image n.jpg
